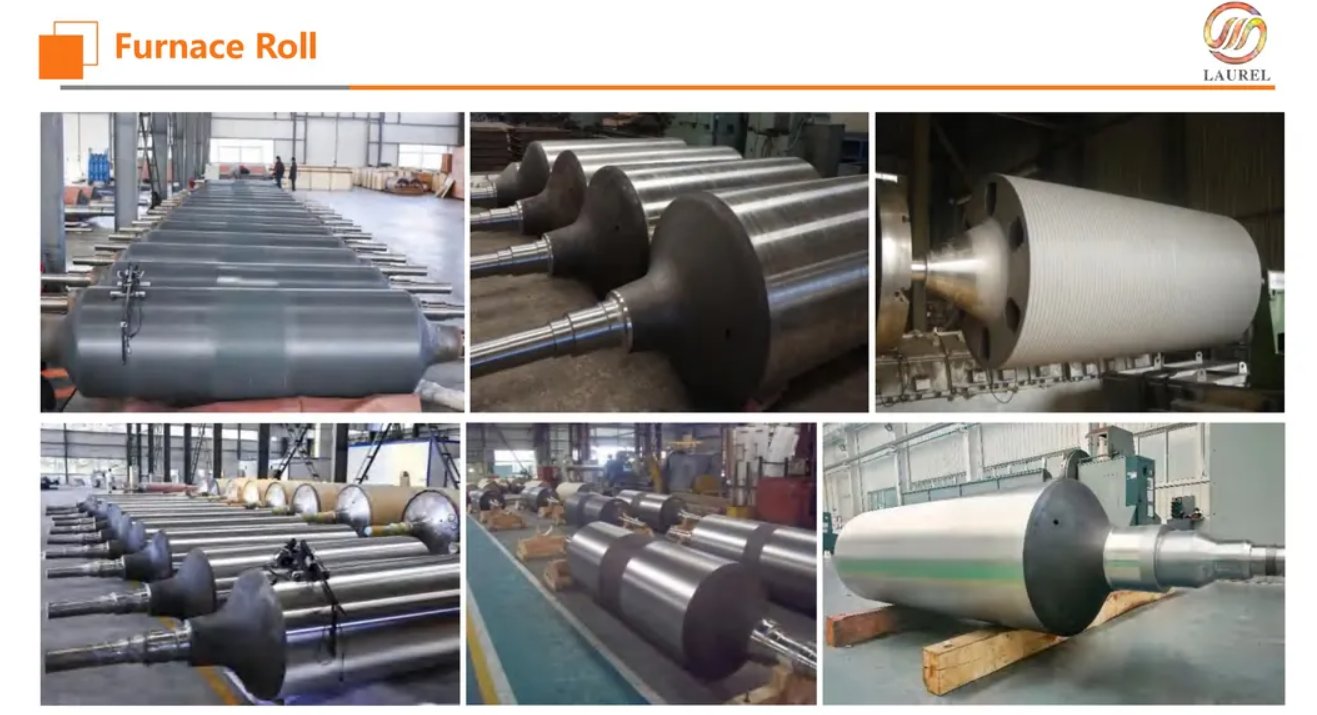

Furnace Rolls

Laurel Furnace rollers are key in industrial heating furnaces. Made of heat-resistant alloys like nickel-chromium ones, they resist over 1000°C. With strong mechanical strength, they bear heavy loads without deforming. The smooth surface reduces friction for seamless material movement. Advanced heat transfer helps optimize heating, boosting production efficiency.

Product Details


Product parameters:

  • Working condition: 500-1250ºC

  • Outer diameter: 100-300mm


Wall thickness:

  • Cast radiant tubes: 6-10mm

  • Welded radiant tubes: 3mm

  • (Pipe section)length: ≤ 4000mm

  • Service life: 3-5 years



Provide complete supporting components:Main materials: ZG45Ni48Cr28W5Si2, ZG40Cr25Ni20


Table parameters

Product descriptionThe centrifugal cast steel pipes are of good heat, corrosion, wear-resistant properties,
working at high temperature environment on average: 800 to 1200°C,
which are used in the steel mills, like CAL (continuous annealing line), CGL (continuous galvanizing line)
ProcessCentrifugal casting, precision casting and machining.
Materials StandardsANSI, ASTM, ASME, DIN, GB
Materials: High nickel and high chrome heat resistant alloys, cobalt base alloys,
like HU, HT, HK, HP, HW, 24/24NbTiZr, 50Cr/50Ni (2.4813),
1.4865, 1.4849, 1.4848, 1.4410, 1.4059, 1.4841, 1.4845, 1.4852, 2.4879 or as per customer's requirements
PackagePacked by seaworthy wooden case or according to buyers' request.
ServiceWe provides recommendations for the entire lifecycle of high alloy components in your furnace. From design, manufacturing, delivery and installation, to operation and maintenance throughout the entire lifecycle, We are  looking  forward to becoming your partner, helping you reduce product costs, reduce energy, improve yield and product lifespan, and reduce air pollution.


Features

Furnace rollers are widely applied in several industrial fields. Firstly, in the steel industry, in the heating furnaces of hot-rolling production lines, furnace rollers are used to support and convey steel billets, enabling them to be heated uniformly during the heating process and providing billets with appropriate temperatures for subsequent rolling processes. In continuous annealing furnaces, furnace rollers are utilized to transport steel strips, ensuring that the steel strips maintain a stable running state during the annealing process to obtain good mechanical properties and surface quality.


Secondly, in the glass industry, in the annealing kilns of float glass production lines, furnace rollers play the role of supporting and transporting glass ribbons. The glass ribbons are gradually cooled and annealed through the rotation of furnace rollers in the annealing kiln, eliminating internal stress and enhancing the strength and stability of the glass. In the field of glass deep processing, such as in the production of tempered glass, furnace rollers are also used to transport glass during the heating process to make it uniformly heated to meet the requirements of tempering treatment.


Finally, in the ceramic industry, in ceramic kilns, furnace rollers are used to carry and transport ceramic products, such as ceramic tiles and tableware. The rotation of furnace rollers allows ceramic products to be heated uniformly in the kiln, ensuring the consistency of the firing process and thus improving the quality and yield of ceramic products.


In addition, in the metal products industry, for the heat treatment processes of some metal products, such as the annealing and quenching of metal pipes and wires, furnace rollers are widely used in heating furnaces to support and transport metal products, enabling them to operate accurately according to process requirements during the heat treatment process to obtain desired properties and quality.
