Ceramic Fiber Module

Laurel Ceramic Fiber Module, A pre-formed, lightweight high-temperature insulation solution made from refractory ceramic fibers, offering excellent thermal stability up to 1430°C. Designed for quick installation in industrial furnaces, kilns, and boilers, it provides superior heat resistance, low thermal conductivity, and energy efficiency. Features customizable shapes, compression resilience, and resistance to thermal shock, making it ideal for complex applications requiring reliable insulation and structural support.

Product Details

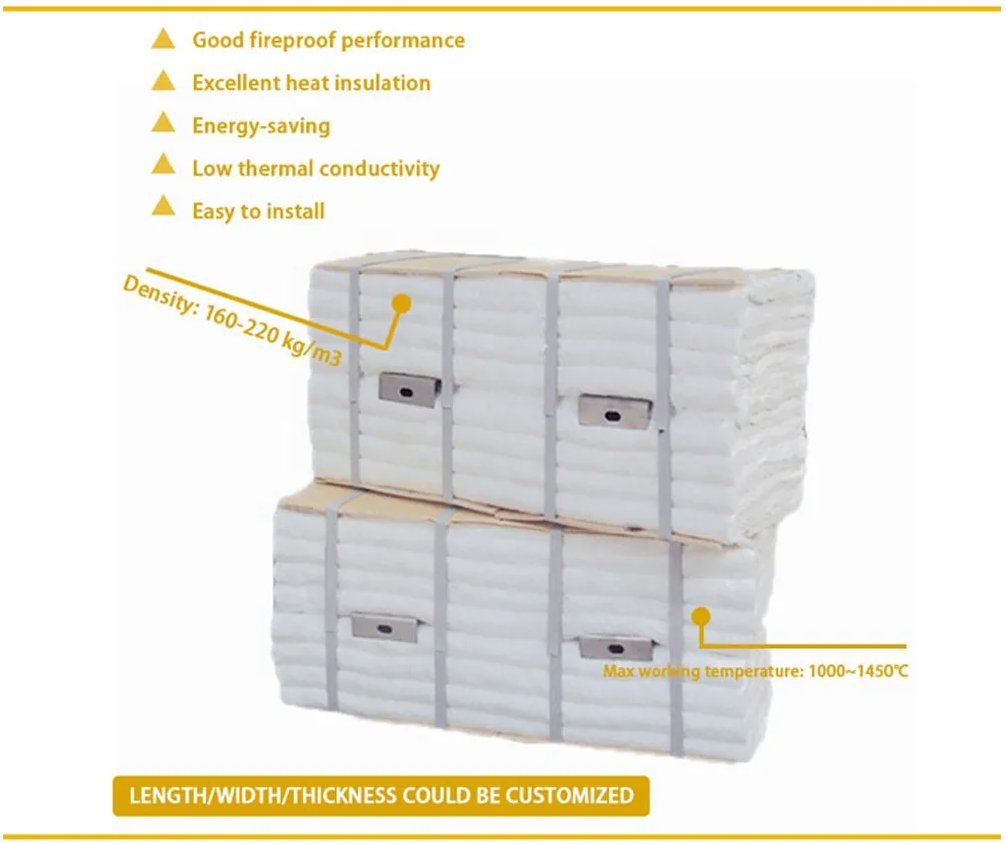

  • Density: 160-220 kg/m³

  • Function: Refractory & Insulation & Fireproof



1. High - Temperature Resistance

The Ceramic Fiber Module can withstand extremely high temperatures up to 1230-1430°C. This makes it ideal for use in harsh industrial environments where other materials may fail.

2. Energy Efficiency

With its low thermal conductivity, it significantly reduces heat loss. This helps cut down on energy consumption and lowers operating costs.

3. Quick Installation

Pre - formed and easy to handle, it allows for rapid installation. This saves time and labor during setup, getting your operations up and running faster.

4. Durability

It has good compression resilience and high resistance to thermal shock. This means it can maintain its shape and performance over long - term use.

5. Customizability

The module can be customized to meet various application needs. Whether it's shape or size, it can be tailored to fit complex setups.

Table parameters

ItemSTD MODULEHP MODULEHA MODULEHZ MODULE
AL2O3(%)≥43≥44≥52≥35
SiO2(%)≥54≥55≥47≥49
ZrO2(%)---≥15
Classification Temperature (ºC)1260126013501430
Working Temperature (ºC)1000110012001350
Density (kg/m3)160-220160-220160-220160-220
Permanent Linear Shrinkage(%)≤3≤3≤3≤3
@24 hours(1000°C)(1100°C)(1200°C)(1350°C)
Thermal Conductivity(W/m·k) @800°C0.190.20.20.2


Features

★ Excellent chemical stability
★ Low thermal conductivity
★ Resistance to heat-shock
★ Fast and easy installation
★ Lower heat storage and fuel costs
★ Several anchor systems



Ceramic Fiber Modules have found extensive applications across diverse industries. In the metallurgical sector, they are indispensably used in furnaces and smelting equipment, where their outstanding high-temperature resistance up to 1230-1430°C and excellent thermal stability effectively prevent heat dissipation, optimizing energy utilization and safeguarding the integrity of the production process. In the energy field, whether it's in power plants' boilers or in petrochemical reactors, these modules play a crucial role. Their ability to minimize heat loss while withstanding harsh chemical environments helps enhance operational efficiency and reduce downtime. For the automotive industry, they are incorporated into engine compartments and exhaust systems, providing reliable thermal insulation to manage heat, improve engine performance, and contribute to a quieter driving experience. Moreover, in the construction domain, they serve as key components in fireproof barriers and thermal insulation systems for high-rise buildings, offering both safety and energy-saving benefits, thus making them a versatile and essential material in modern industrial and commercial applications.
