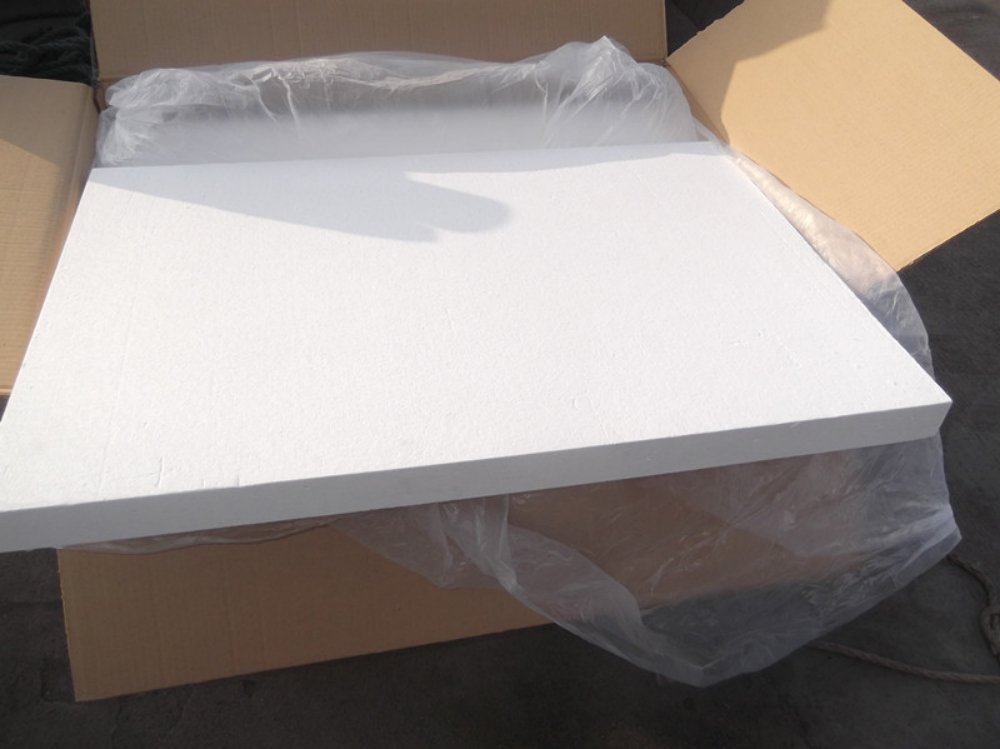

Ceramic Fiber Board

Laurel Ceramic fiber board is an outstanding insulation material. Made from refractory ceramic fibers, it can endure high temperatures up to 1230-1430°C. It features low thermal conductivity, which means it effectively prevents heat transfer and saves energy. With a rigid structure, it has good mechanical strength, suitable for use in industrial furnaces, kilns and boilers. Its pre-cut and lightweight design facilitates installation even in complex shapes. Moreover, being environmentally friendly and halogen-free, it complies with strict safety and performance standards like ISO and ASTM, making it a reliable choice in various thermal applications.

Product Details

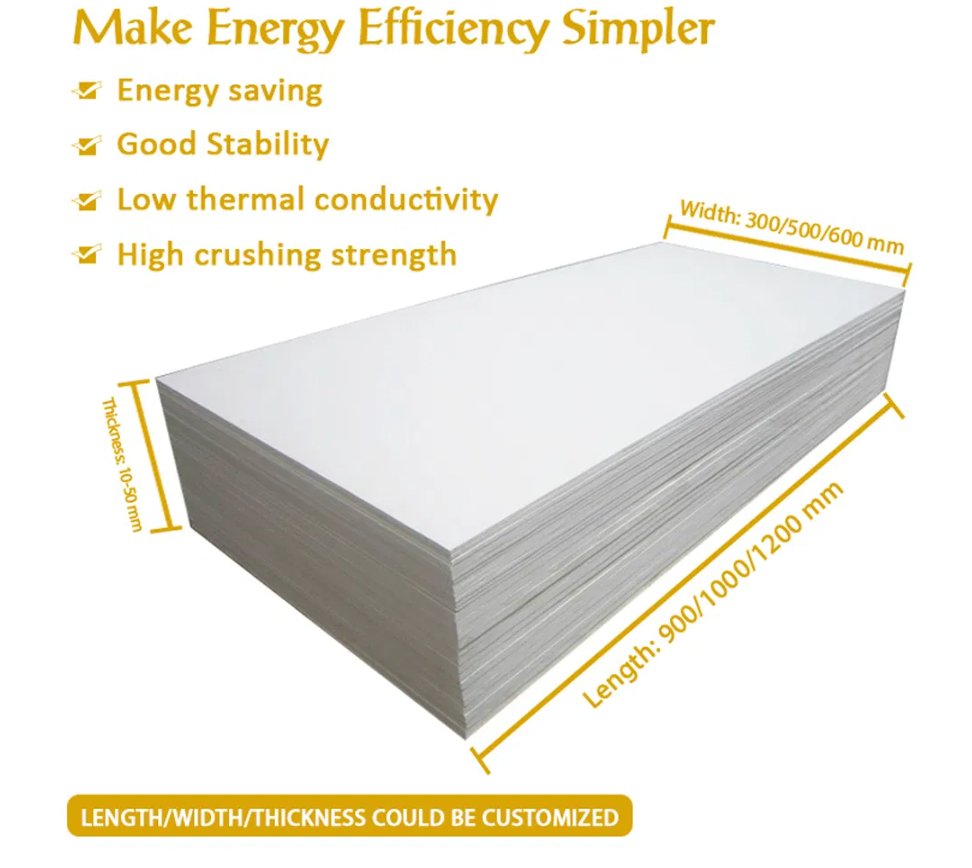

  • Density: 280-450 kg/m³

  • Thickness: 6-50 mm

  • Excellent Insulation

  • Function: Refractory & Insulation & Fireproof


Ceramic fiber board Outstanding Thermal Performance


High Temp Endurance: Endures 1430°C, suits steel, glassmaking. Stays firm, shields equipment.

Low Thermal Cond: Blocks heat loss, cuts energy in furnace linings & pipes.


Excellent Mech Properties


Rigid: Keeps shape, supports structures, resists force.

Light: Easier to handle than trad matls, fits load-limited projects.


Good Adaptability


Thermal Shock Res: Handles temp swings, lasts in intermittent furnaces.

Chem Res: Resists common chemicals, endures in chem plants.


Convenient Installation


Pre-cut: Ready for site splicing, saves time, boosts efficiency.

Customizable: Shape, size adjustable for varied needs.


Eco-friendly & Healthy


Harmless: No toxins, safe for air, meets green norms.

Recyclable: Can be reused, cuts waste, aids sustainability.


Table parameters

ItemSTD BOARDHP BOARDHA BOARDHZ BOARD
Classification Temperature (ºC)1260126013501430
Loss of Ignition(%)≤6≤6≤6≤6
Density (kg/m3)250-350250-350250-350250-350
Permanent Linear Shrinkage(%)(24 hours)≤3(1000°C)≤3(1100°C)≤3.5(1200°C)≤3.5(1350°C)
Compressive Strength (Mpa)0.15-0.30.15-0.30.15-0.30.15-0.3
Thermal Conductivity(W/m·k)
400 ºC0.090.070.070.07
800 ºC0.150.140.130.13
1000 ºC0.20.20.20.19


Features

★ Low heat storage
★ Low thermal conductivity
★ Excellent heat stability and thermal shock resistance
★ High rigidity and light weight
★ Easy shaping or cutting



Ceramic fiber boards have found extensive and crucial applications in high-temperature industries. In the steelmaking sector, they line the interiors of blast furnaces and converters, withstanding the intense heat of molten metal and providing excellent thermal insulation. This not only helps maintain the high temperatures necessary for efficient steel production but also reduces heat loss to the surroundings, enhancing energy utilization. In the glass manufacturing process, they are integral to furnace walls and crowns, safeguarding against heat dissipation and ensuring a stable thermal environment for the precise melting and shaping of glass. For non-ferrous metal smelting, such as aluminum and copper, ceramic fiber boards are deployed to protect equipment and workers from the extreme heat generated, while also contributing to the optimization of the smelting process by minimizing heat escape. Moreover, in the petrochemical industry, where high-temperature reactors and distillation columns are commonplace, these boards act as reliable heat barriers, preventing heat transfer that could lead to inefficiency or even safety hazards, thus playing a pivotal role in maintaining smooth and reliable operations under harsh thermal conditions.
