Polycrystalline Fiber Board

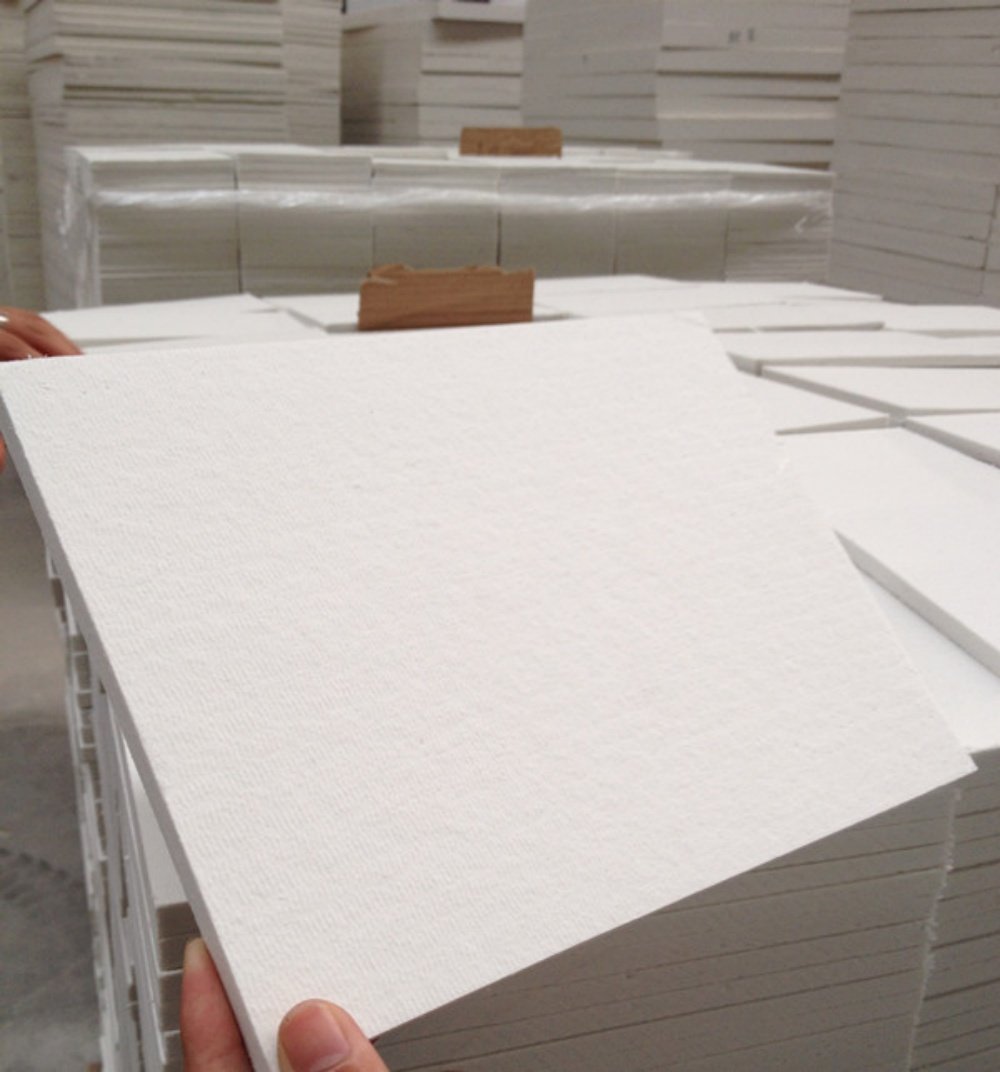

Laurel Polycrystalline Fiber Boards (PCF Boards) are rigid, lightweight insulation panels made from advanced alumina-silica fibers. Engineered to withstand up to 1600°C, they deliver superior thermal resistance, low heat conductivity, and chemical stability for industrial furnaces, petrochemical reactors, and high-temperature equipment. Their pre-cut, modular design ensures easy installation, reducing downtime and energy loss. Environmentally friendly and fireproof, these boards optimize energy efficiency while providing durable protection in extreme conditions.

Product Details




  • Density: 300-450 kg/m³

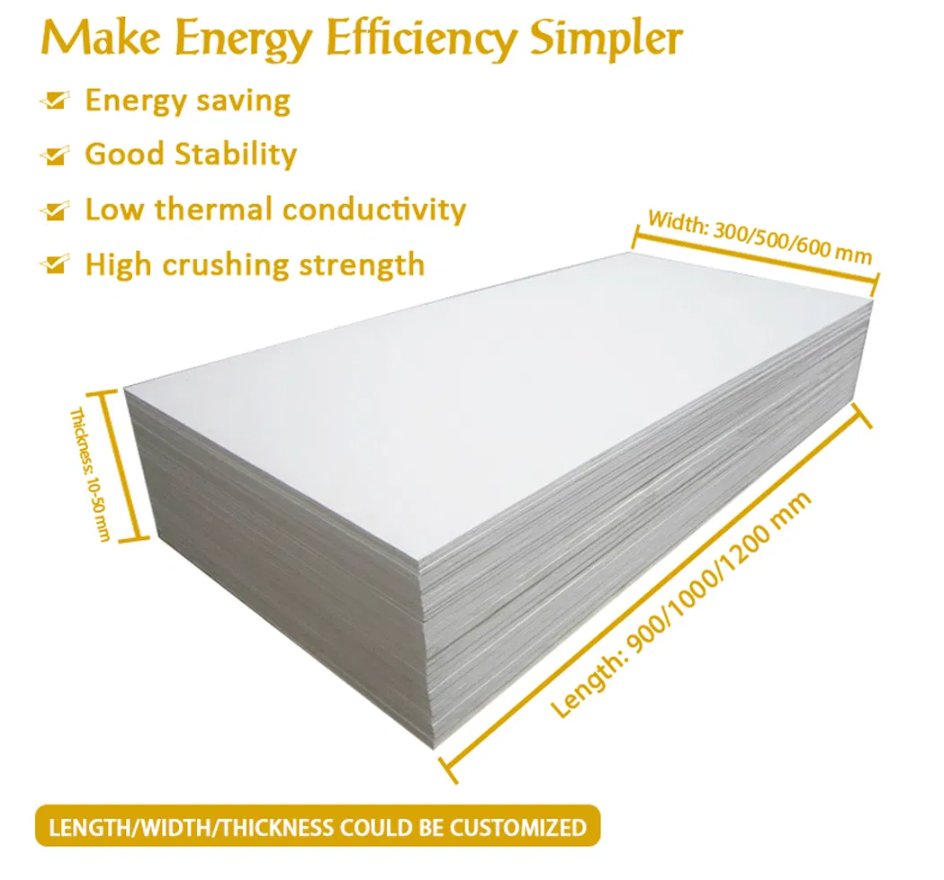

  • Thickness: 6-50 mm

  • Excellent Insulation

  • Function: Refractory & Insulation & Fireproo


The characteristics and advantages of Polycrystalline Fiber Boards


1. High-temperature resistance: Capable of withstanding extreme temperatures up to 1600°C, suitable for high-temperature environments such as metallurgical furnaces and petrochemical reactors.

2. Efficient thermal insulation: With a low thermal conductivity (≤0.15W/m·K), it significantly reduces heat loss and lowers energy consumption.

3. Lightweight yet high-strength: Having a low density (≤200kg/m³) but excellent rigidity, it lightens the load on equipment while maintaining structural stability.

4. Chemical stability: Resistant to acid and alkali corrosion, applicable to corrosive working conditions and prolonging the service life of equipment.

5. Easy installation and maintenance: The pre-cut modular design enables quick installation and reduces downtime.

6. Environmentally friendly and safe: Asbestos-free and free of volatile substances, fire-retardant, conforming to industrial safety standards.

7. Long lifespan: Resistant to thermal shock and creep, maintaining stable performance even under high-frequency temperature fluctuations.


Table parameters

Classification Temperature(ºC)160017001800
Working Temperature(ºC)145015501650
Permanent Linear Shrinkage(%)1450ºC×6h ≤11550ºC×6h ≤11650ºC×6h ≤1
Theoretical Density (kg/m3)≥300≥450≥500
Al2o3 (%)70-73
SiO2(%)26-29
PackagePlastic bag and plastic foam inside, Wooden box outside.


Features

★Low thermal conductivity
★Low heat storage
★Lightweight
★Excellent thermal shock resistance
★Resistant to hot gas erosion
★Easy to cut, handle, and install
★Resists penetration by molten aluminum and other non-ferrous metals


Polycrystalline fiber boards have emerged as a versatile solution, finding extensive applications across diverse industries. In the metallurgical realm, they line the interiors of smelting furnaces, enduring scorching temperatures while ensuring minimal heat dissipation, thus supercharging the metal extraction and refinement processes. For the petrochemical sector, these boards form a crucial shield around reactors and pipelines, fending off both heat transfer and chemical corrosion, safeguarding the integrity of complex chemical reactions. The power generation field benefits immensely too, as they are integrated into boilers and turbines, enhancing energy conversion rates and dampening operational noise. In construction, they offer dual advantages of thermal insulation and fireproofing, making buildings more energy-efficient and compliant with safety codes. Even in specialized industries like glass and ceramics manufacturing, polycrystalline fiber boards prove indispensable, optimizing furnace environments to yield high-quality products. Their wide-ranging utility makes them a go-to choice for modern industrial and building applications alike.
