Vacuum Formed Ceramic Fiber

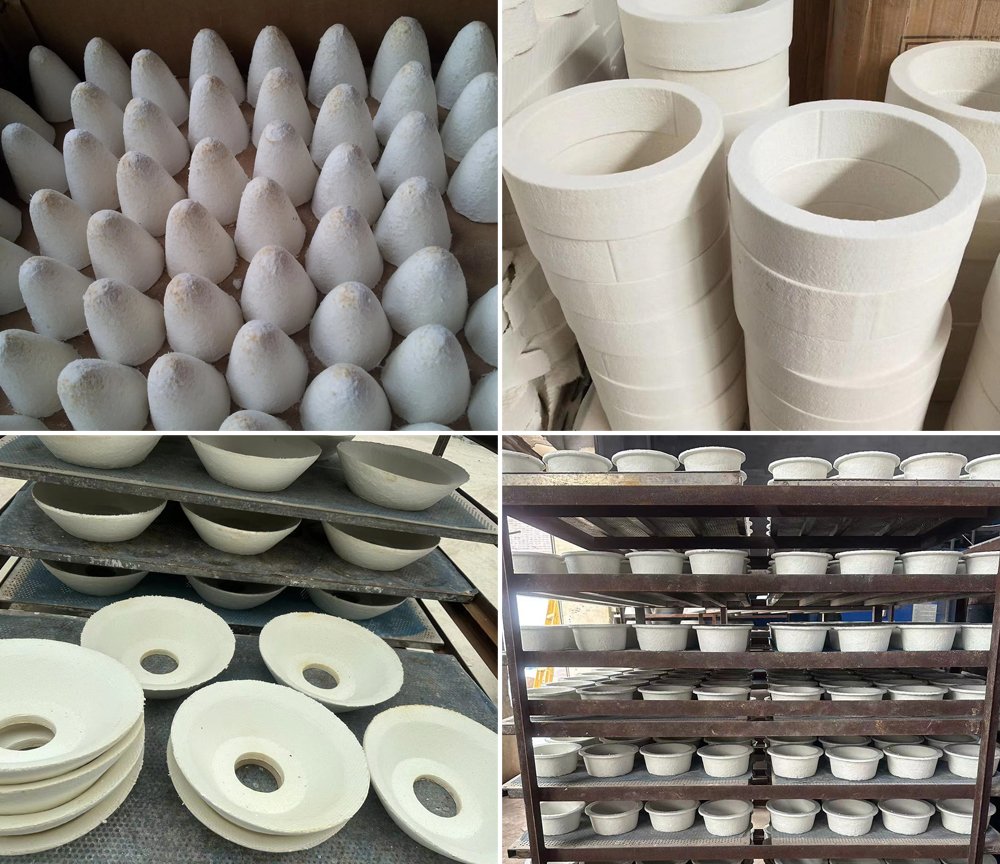

Laurel’s Vacuum Formed Ceramic Fiber Shapes represent a tailored approach to high-performance insulation in extreme environments. Manufactured using vacuum forming techniques, these shapes are composed of high-purity ceramic fibers blended with proprietary organic and inorganic binders. The result is a dimensionally stable, lightweight component capable of enduring continuous exposure to temperatures up to 1430°C. Whether used as burner sleeves, flue gas diverters, or thermal buffers, these pre-engineered forms provide unmatched reliability in thermal containment, dimensional conformity, and long-term structural stability.


Product Details


Applications of Ceramic Fiber Vacuum Formed Shapes

Industrial Furnaces and Kilns: Used as burner sleeves, flame face linings, and insulation plugs in high-temperature chambers.

Metallurgy and Foundries: Ideal for molten metal processing zones, including ladle covers and trough insulation.

Petrochemical Equipment: Installed in reactors, distillation towers, and pipe flanges for thermal insulation and fire containment.

Energy and Power Plants: Applied in boiler housings, combustion chambers, and turbine heat shields to control heat flow.

Aerospace and Automotive Thermal Systems: Used in exhaust heat shields and high-precision thermal control elements.

Ceramic and Glass Manufacturing: Forms part of batch kilns, muffles, and support blocks exposed to radiant heat.

Available in a variety of shapes and thicknesses to meet specific needs.Offered at competitive Vacuum Formed Ceramic Fiber Prices.Provides unmatched thermal containment and structural stability.Suitable for industrial furnaces, metallurgy, petrochemicals, power plants, and more.Backed by decades of experience in refractory solutions, Laurel’s Ceramic Fiber Vacuum Formed Shapes are designed to provide reliable.


Table parameters

ItemSTDHPHAHZ
ColorWhiteWhiteWhiteWhite
Density(kg/m3)280-400280-400280-400280-400
Linear Shrinkage Rate(%)≤1.5≤1.5≤1.5≤1.5
-1000-1000-1100-1200
Flexural strength(Mpa)>=0.6>=0.6>=0.6>=0.6
Thermal Conductivity Rate(W/m.k)400ºC0.090.09--
600ºC0.160.160.140.12
800ºC0.210.210.180.16
1000ºC--0.210.19
Chemical Composition (%)Al2O343-4546-4952-5538-43
ZrO2---15-17


Features

Features of Vacuum Formed Ceramic Fiber

Operating Temperature: ≤ 1430°C

Standard Density: 280–400 kg/m³

Custom Thickness: 6 mm to 50 mm

Application Geometry: Designed to exact dimensional and shape requirements.

Surface Quality: Uniform texture, minimal fiber release.

Lightweight and Dimensionally Stable: Ensures easy installation and long-term performance.

Custom Solutions: Tailored to fit specific application needs.
