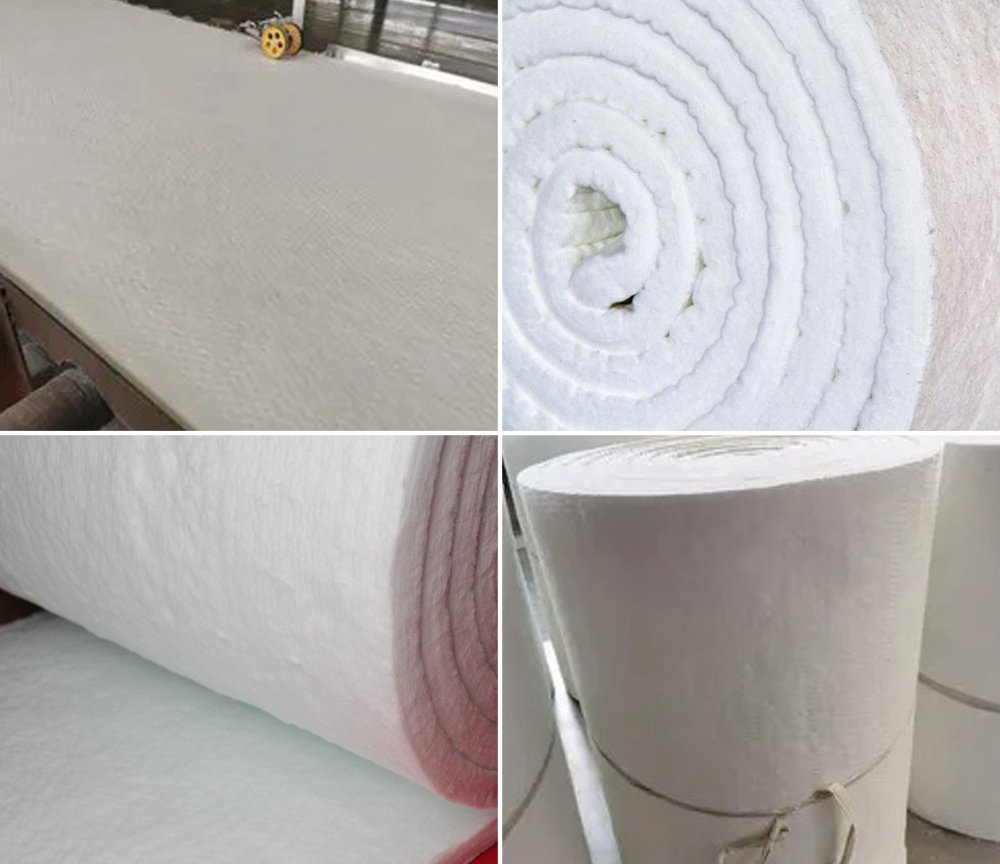

Soluble Ceramic Fiber Blanket

Laurel’s eco-friendly refractory blanket is a high-density soluble ceramic fiber blanket developed for extreme industrial conditions demanding both thermal reliability and environmental responsibility. Engineered from high-purity soluble ceramic fiber, it provides powerful insulation performance while maintaining structural stability under thermal cycling and mechanical stress.

As a modern soluble insulating blanket, this product aligns with current safety and sustainability standards—offering low thermal conductivity, resistance to flame and chemical corrosion, and excellent energy efficiency. Its eco-friendly refractory blanket structure allows for easy installation across diverse applications, from kilns to reactors and fireproofing systems.


Product Details

Application

Furnaces & Kilns

The soluble ceramic fiber blanket is ideal for use in high-temperature industrial furnaces, kilns, and ovens. It provides reliable thermal insulation under pressure while minimizing environmental impact as an eco-friendly refractory blanket.

Petrochemical & Chemical Plants

In chemical processing units, the soluble insulating blanket protects reactor vessels, distillation columns, and pipelines from external heat damage, while contributing to safer, cleaner plant operations.

Fire Protection & Passive Safety Systems

Widely used in fireproof doors, thermal barriers, and structural fire insulation systems, this eco-friendly refractory blanket enhances fire resistance in both commercial and industrial buildings.

Industrial Boilers & Heat Exchangers

Wraps around boilers and piping to reduce energy loss. The soluble ceramic fiber blanket ensures thermal efficiency and mechanical stability under vibration or heat stress.

Glass & Ceramic Manufacturing

Used for lining forming kilns and ceramic ovens, where thermal retention and high-temperature integrity are key. The soluble insulating blanket supports consistent heat profiles and production quality.


Table parameters

Item

1100℃ Bio-soluble Fiber Blanket

Density (kg/m3)

64

96

128

Permanent Linear Shrinkage(%)

1100℃×24h≤1.0

Tensile Strength(Mpa)

0.03

0.05

0.07

Shot Content(%)

≤12

Thermal Conductivity (W/m.k)

400℃

0.10

0.09

0.08

600℃

0.16

0.13

0.12

800℃

0.27

0.20

0.17

Chemical Composition(%)


SiO2(%)

61-67

CaO(%)

27-33

MgO(%)

4-7


Features

Features

Eco-Friendly Refractory Blanket: Manufactured without hazardous materials; safe for workers and the environment

Soluble Ceramic Fiber Blanket: Breaks down naturally in biological systems, reducing long-term health and disposal risks

High-Density Structure: Maintains form and insulation efficiency even under extreme pressure and heat

Superior Thermal Resistance: Withstands temperatures from 1000°C to 1450°C

Low Thermal Conductivity: Ensures energy conservation in high-temperature processes

Soluble Insulating Blanket: Flexible yet robust—perfect for curved surfaces or confined spaces
