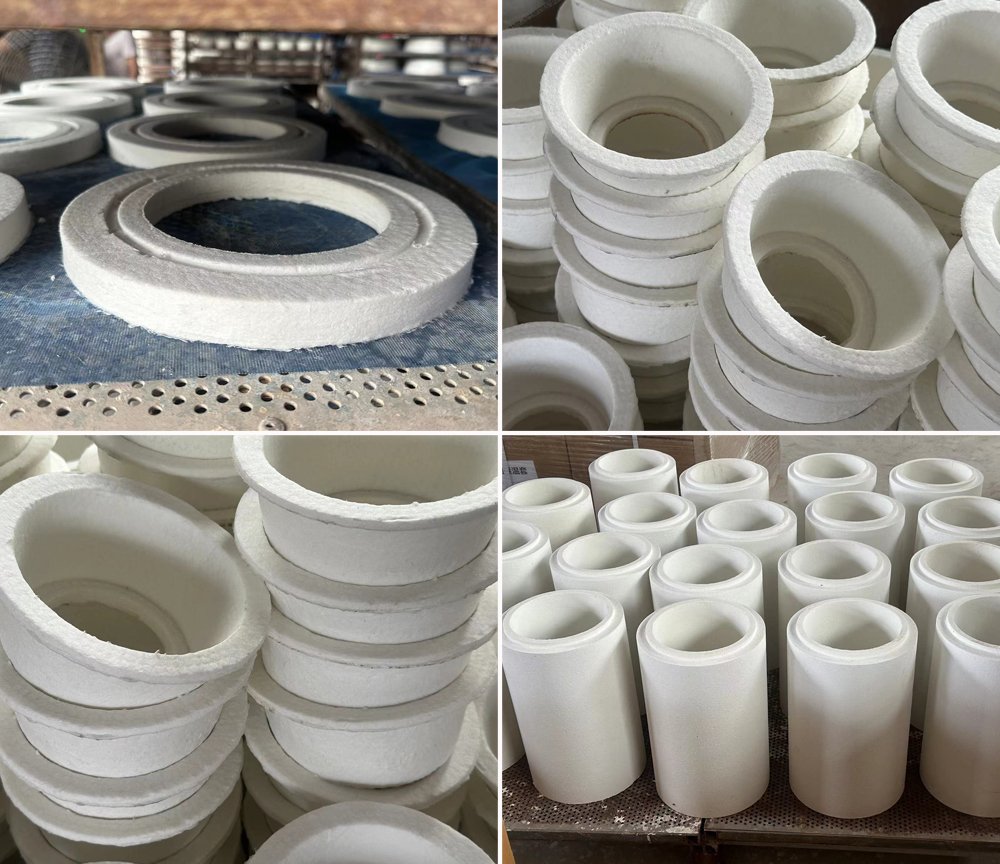

Ceramic Vacuum Shape Part

Laurel’s Ceramic Fiber Vacuum Formed Shapes are precision-engineered, rigid insulation components crafted through advanced vacuum molding of high-purity alumino-silicate fibers. Developed to endure intense thermal conditions, these custom-formed products are designed to fit complex geometries where conventional ceramic fiber boards or blankets cannot provide optimal performance. As a leading Ceramic Vacuum Shape Part Supplier, Laurel ensures that each part meets the highest standards of quality and performance.

The result is a lightweight, high-strength thermal barrier that resists shrinkage, thermal shock, and chemical degradation, delivering exceptional insulation across a wide range of industrial thermal processing systems. Our Ceramic Fiber Vacuum Formed shapes are ideal for applications requiring custom solutions and superior thermal protection.


Product Details

Applications of Ceramic Vacuum Shape Parts

Metallurgical Furnaces: Burner blocks, sight tubes, heat shields.

Ceramic & Glass Kilns: Roof tiles, support pads, edge protectors.

Petrochemical Plants: Lining of reformer tunnels, manifold insulators.

Aerospace Components: Molded exhaust shields, engine thermal barriers.

Power Generation: Burner sleeves, boiler insulation segments.

As a leading Ceramic Vacuum Shape Part Supplier, Laurel offers reliable, high-quality solutions.Backed by decades of experience in refractory solutions, Laurel’s Ceramic Fiber Vacuum Formed Shapes provide the perfect blend of durability, thermal resistance, and customizability.


Table parameters

ItemSTDHPHAHZ
ColorWhiteWhiteWhiteWhite
Density(kg/m3)280-400280-400280-400280-400
Linear Shrinkage Rate(%)≤1.5≤1.5≤1.5≤1.5
-1000-1000-1100-1200
Flexural strength(Mpa)>=0.6>=0.6>=0.6>=0.6
Thermal Conductivity Rate(W/m.k)400ºC0.090.09--
600ºC0.160.160.140.12
800ºC0.210.210.180.16
1000ºC--0.210.19
Chemical Composition (%)Al2O343-4546-4952-5538-43
ZrO2---15-17


Features

Features of Ceramic Fiber Vacuum Formed Shapes

Service Temperature: Up to 1430°C

Density Range: 280–400 kg/m³

Thickness Options: 6–50 mm

Shapes: Custom-designed blocks, sleeves, rings, cones, and specialized geometries.

Surface Finish: Smooth, homogeneous, dust-suppressed.

High-Strength Thermal Barrier: Resists shrinkage, thermal shock, and chemical degradation.

Custom Solutions: Tailored to fit complex geometries and specific application requirements.
