Alumina Bubble Insulating Brick – Energy-Efficient High-Temp Insulation

banner

Insulation and Refractory Materials

Laurel Alumina Bubble Insulating Brick China
Laurel Alumina Bubble Insulating Brick China
Alumina Bubble Brick
Ultra-Lightweight Alumina Bubble Insulating Brick
Alumina Bubble Insulating Brick
Alumina Bubble Insulating Brick

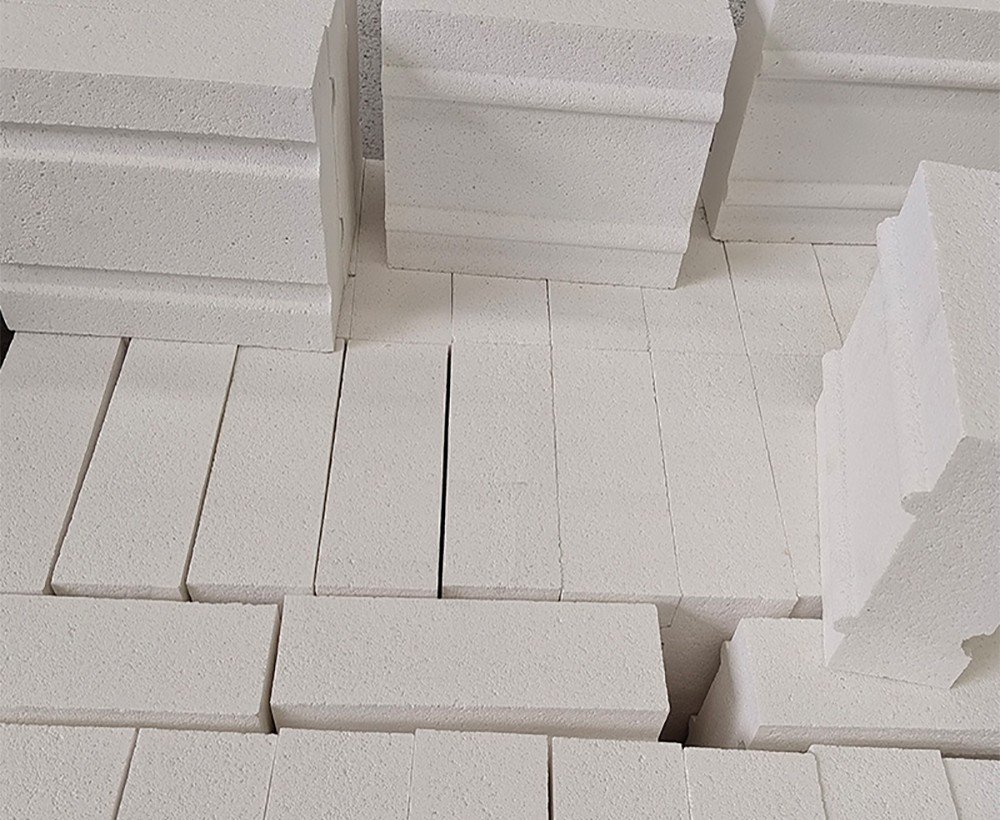

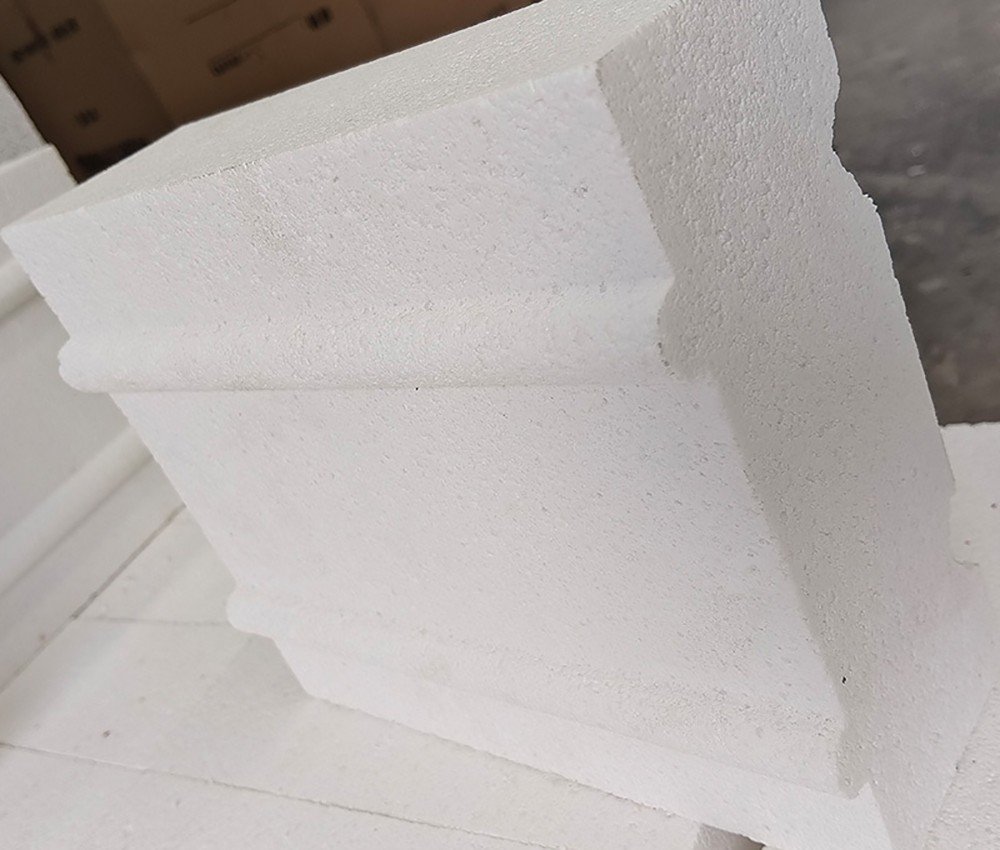

Laurel Alumina Bubble Insulating Brick is a high-performance refractory material crafted from alumina (Al₂O₃) as the primary component, combined with a proprietary foaming agent to create a lightweight, porous structure through controlled sintering. The brick features a unique bubble-like microstructure that minimizes thermal conductivity while maintaining high refractoriness, making it ideal for extreme heat environments where energy efficiency and thermal insulation are critical. Its low density reduces structural load compared to traditional refractory bricks, while the non-corrosive, asbestos-free composition ensures safety. Engineered for applications requiring both thermal stability and lightweight design, this brick is widely used in industrial furnaces, kilns, and high-temperature processing systems to reduce heat loss and enhance operational efficiency.


Product Details




Alumina Bubble Insulating Brick: Advantages & Features

Exceptional High-Temperature Resistance

Withstands continuous temperatures up to 1700°C and short-term peaks up to 1750°C, ensuring stability in extreme thermal cycles.

Ultra-Low Thermal Conductivity

Porous bubble structure reduces heat transfer, significantly improving energy efficiency for industrial furnaces.

Lightweight & High Strength-to-Weight Ratio

Density up to 50% lower than conventional fireclay bricks, reducing structural load while maintaining compressive strength for load-bearing applications.

Chemical Corrosion Resistance

Inert to alkalis, acids, and molten metal slag, making it suitable for harsh environments in metallurgy and chemical processing.

Eco-Friendly & Compliant

Asbestos-free and lead-free composition meets strict international safety standards (ASTM, ISO), supporting sustainable industrial practices.


Table parameters

Item

Alumina Bubble Brick

Types

Unit

85#

90#

99#

The Highest Service Temperature

1680

1700

1800

Al2O3

%

≥85

≥90

≥99

SiO2

%

≤15

≤8

≤0.2

Fe2O3

%

≤0.2

≤0.2

≤0.2

Bulk Density

g/cm3

1.4-1.7

1.4-1.7

1.4-1.7

Cold Crushing Strength

MPa

≥12

≥10

≥9

Refractoriness Under Load (0.1MPa, 0.6%)

≥1650

≥1770

≥1800

Reheating Linear Change Rate (1600℃*3h)

%

±0.3

±0.3

±0.3

Thermal Conductivity (Average temperature 800℃ )

W/(m*k)

≤0.8

≤1.3

≤1.5


Features

★ Low thermal conductivity

★ High purity

★ Low bulk density

★ High mechanical strength

★ Good chemical stability


Alumina Bubble Insulating Brick: Applications

This versatile brick excels in industrial sectors demanding lightweight, high-temperature insulation:


Metallurgy & Foundries: Used in blast furnace linings, steel ladles, and induction furnace roofs to insulate molten metal containers and reduce energy consumption during casting processes.

Power Generation: Installed in biomass boilers, waste-to-energy incinerators, and gasifier chambers to protect critical components from thermal stress while improving heat retention in combustion zones.

Chemical & Petrochemical: Suitable for high-temperature reactors, kilns, and heat exchangers in corrosive environments, offering resistance to chemical vapors and thermal shocks.

Glass Manufacturing: Applied in glass melting furnaces, forehearths, and annealing lehrs to maintain uniform temperatures and reduce fuel usage in production lines.

Ceramics & Refractory: Used as kiln linings and firing chamber insulation in ceramic production, ensuring consistent heat distribution for high-quality (firing) results.
