Refractory Ceramic Fiber

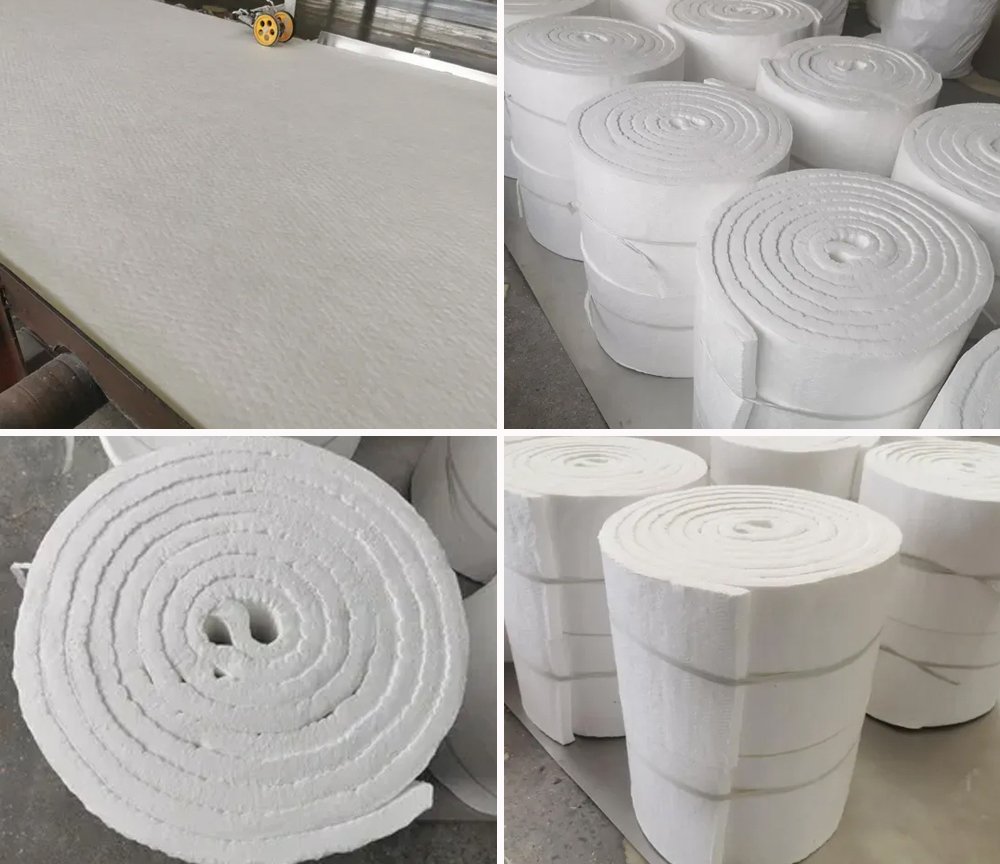

Laurel Refractory Ceramic Fiber Blanket is an engineered insulation solution designed for high-efficiency thermal protection in extreme temperature environments. Produced from ultra-clean alumina-silica fibers using precision spinning technology, our Refractory Ceramic Fiber blanket delivers exceptional durability, dimensional stability, and long-term performance in both static and dynamic heat systems.

As a trusted Refractory Ceramic Fiber Manufacturer, Laurel ensures that our products are formulated without organic additives. The Refractory Ceramic Fiber Blanket ensures zero smoke emission and no binder burnout, even during initial heat exposure. This makes it particularly suitable for industries where thermal reliability, process cleanliness, and installation adaptability are critical.


Product Details

6.4





Applications of Refractory Ceramic Fiber

★Industrial Kilns and Furnaces: Back-up insulation layers, hot face lining, and burner surrounds.

★Power Plants & Energy Sector: Turbine housings, boiler walls, and expansion joints in heat recovery systems.

★Petrochemical & Oil Refineries: Pipe insulation, flare stack linings, reactor shields.

★OEM & Fabricated Modules: Preformed modules, heat shields, and complex equipment linings.

★Fire Protection Systems: Passive fireproofing for structural elements, compartments, and fire barriers.

Table parameters

ItemSTD BLANKETHP BLANKETHA BLANKETHZ BLANKET
AL2O3(%)≥43≥44≥52≥35
SiO2 (%)≥54≥55≥47≥49
ZrO2 (%)---≥15
Density (kg/m3)6496128961289612896128
Classification Temperature(ºC)1260126013501430
Shot Content(%)≤15≤15≤15≤12
Permanent Linear Shrinkage(%)1000ºCx24h≤31100ºCx24h≤31200ºC*24h≤31350ºC*24h≤3
Tensile Strength(Mpa)0.030.050.070.050.070.050.070.050.07
Thermal Conductivity(W/m·k)
200ºC0.080.070.060.070.060.060.060.060.06
400ºC0.120.110.10.110.10.110.10.110.1
600ºC0.20.190.180.190.170.180.160.160.15
800ºC0.30.240.20.230.20.220.20.210.2
1000ºC0.40.330.280.310.260.30.260.30.27


Features

Features of Refractory Ceramic Fiber Blanket

1.Temperature Classes: Available in 1260°C, 1350°C, and 1430°C grades.

2.Available Densities: 64, 96, 128, 160 kg/m³.

3.Standard Thicknesses: 6mm to 50mm.

4.Composition: High-purity alumina-silica fiber (binder-free).

5.Format: Roll form, easy to cut, wrap, or layer for custom applications.

6.Consistent Thermal Protection: Engineered for longevity under extreme thermal cycles.

7.Easy Fabrication and Installation: Requires minimal tools or downtime.

8.Compatibility: Works with both rigid and flexible insulation assemblies.
