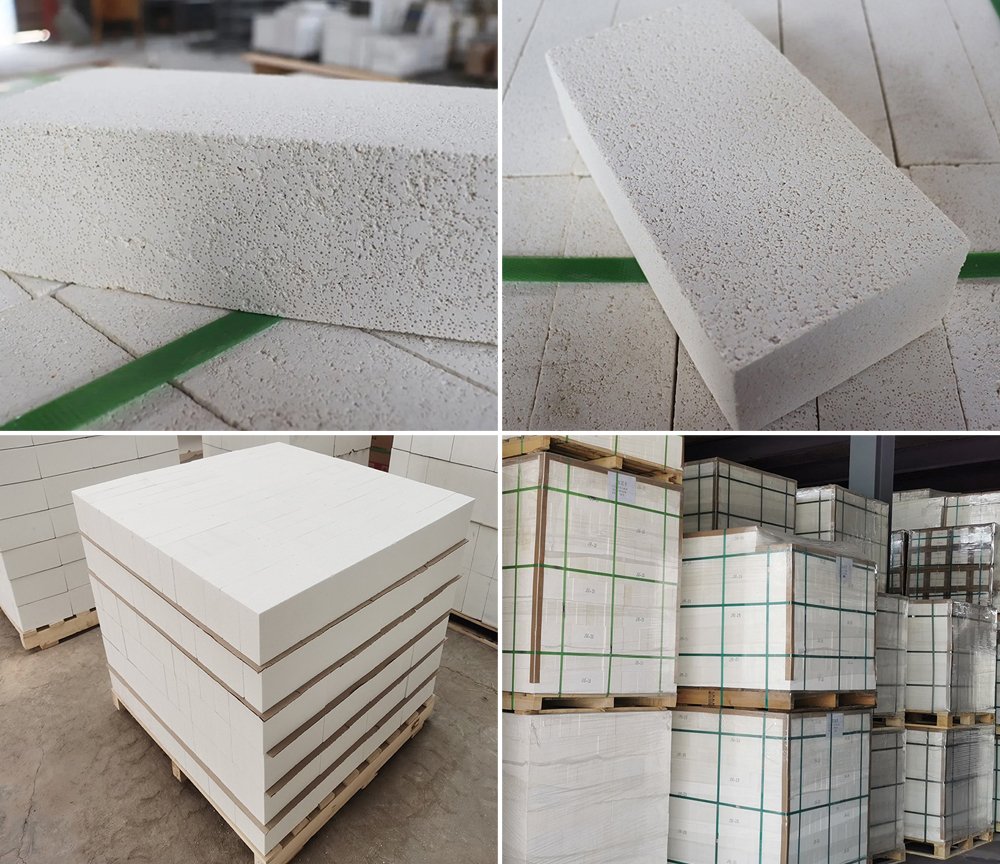

Mullite Insulating Fire Brick​

Laurel’s mullite insulation brick is a lightweight, high-efficiency refractory product crafted from synthetic mullite (Al₂O₃-SiO₂). Manufactured by leading mullite insulating brick manufacturers, this brick is designed to offer exceptional thermal insulation and mechanical strength in high-temperature applications ranging from 1260°C to 1550°C.

Through high-temperature sintering and precision foaming techniques, each mullite insulating fire brick achieves minimal thermal conductivity and excellent resistance to chemical attack in oxidizing and neutral atmospheres. It is widely used in energy-saving linings and as backup insulation in a range of industrial furnaces and kilns.


Product Details





Applications



1.Hot-face linings in ceramic tunnel and roller kilns

2.Backup insulation for dense refractory linings

3.Heat treatment chambers in non-ferrous metallurgy

4.Energy-efficient linings for petrochemical and glass furnaces

5.Lightweight refractories for lab or pilot-scale units

6.Laurel’s mullite insulating fire brick solutions are backed by years of refractory expertise. Whether you’re sourcing from top mullite insulating brick manufacturers or comparing the best-performing mullite insulation brick products, our lineup offers industrial-grade insulation tailored for thermal efficiency, structural reliability, and application flexibility.


Table parameters

ItemMullite Insulating bricks
Grade23262830
Al2O3(%)≥40≥42≥55≥67≥70
Fe2O3(%)≤1.2≤1.0≤1.0≤0.7≤0.6
Bulk density ( g/cm3 )0.60.80.80.91
Classification Temperature(°C)13001300140015001550
Cold Crushing Strength (Mpa)≥1≥2≥2.3≥2.6≥3.0
Permanent Linear Change(%) x 12hrs≤1.0≤1.0≤1.0≤0.8≤0.8
Thermal conductivity(W/m.k)0.18
(350ºC)
0.23
(350ºC)
0.25
(350ºC)
0.33
(350ºC)
0.43
(350ºC)


Features

Features

★Property Value

★Alumina Content 45–75% (grade dependent)

★Bulk Density 0.6–1.2 g/cm³

★Thermal Conductivity ≤ 0.15 W/m·K @ 800°C

★Max Operating Temperature ≤ 1550°C

★Cold Crushing Strength Optimized for lightweight strength

★Thermal Shock Resistance Excellent under fast cycling

★Advanced Thermal Insulation

★Each mullite insulation brick features a micro-porous structure that significantly reduces heat loss. Its superior insulation properties result in energy savings across both batch and continuous high-temp operations.

Extreme Temperature Resistance

★As a premium mullite insulating fire brick, it withstands prolonged exposure to heat without deformation or loss of volume integrity, maintaining performance in the hottest environments.
