Microporous Insulation Board Supplier

Laurel microporous insulation board is an advanced thermal insulation material designed for high-temperature industrial applications. As a professional supplier of microporous insulation board, we provide high-performance solutions with ultra-low thermal conductivity and excellent energy-saving performance.

Laurel nano microporous insulation board is manufactured using nano-scale silica and infrared opacifiers through a special process, forming a structure with extremely fine pores. This structure effectively minimizes heat transfer, making nano insulation board one of the most efficient thermal insulation materials available today.

Compared with traditional insulation materials, nano insulation board delivers superior insulation performance even at high temperatures, helping industries significantly reduce energy consumption and improve system efficiency.

Product Details


The microporous insulation board is composed of nano silica powder, reinforcing fibers, and additives. Through advanced production technology, the nano microporous insulation board achieves a uniform microstructure with extremely low thermal conductivity.

As a reliable supplier, we offer customized microporous insulation board solutions tailored to different operating temperatures and installation conditions. The nano insulation board is lightweight, easy to process, and suitable for complex equipment structures.

The microporous insulation board can be supplied in rigid board form or flexible panel form, depending on application requirements.

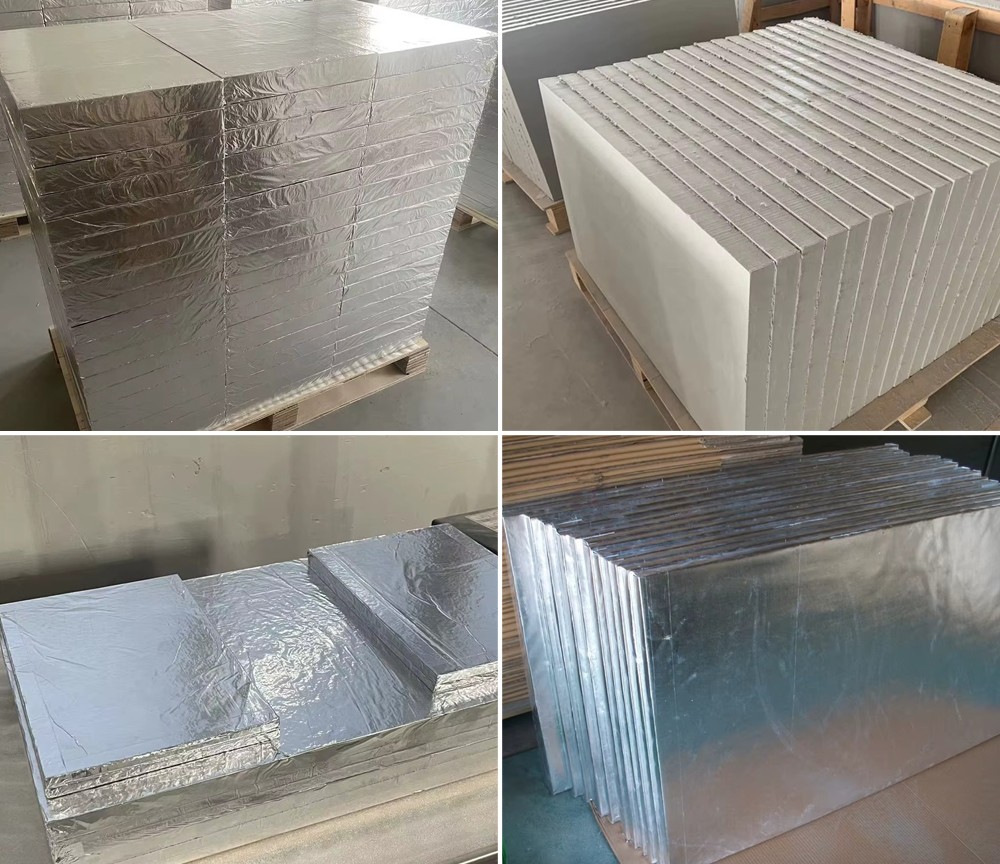

产品详情图

Table parameters

ItemData
Thermal Conductivity (200℃)≤ 0.025 W/m·K
Thermal Conductivity (600℃)≤ 0.035 W/m·K
Max Service Temperature1000℃ – 1200℃
Density200 – 350 kg/m³
Compressive Strength≥ 0.3 MPa
Shrinkage (High Temp)≤ 2%
Thickness5 – 50 mm


Features

Features of Nano Microporous Insulation Board

Ultra-Low Thermal Conductivity
Nano microporous insulation board offers insulation performance close to vacuum insulation, far exceeding traditional materials.

Excellent High Temperature Resistance
The microporous insulation board maintains stable performance under continuous high-temperature conditions.

Energy Saving & Efficiency Improvement
Using nano insulation board significantly reduces heat loss and improves thermal efficiency in industrial systems.

Lightweight & Easy Installation
Microporous insulation board is lightweight and can be easily cut and installed, reducing construction time.

Strong Chemical Stability
The nano microporous insulation board resists chemical corrosion and maintains long-term durability.


Applications of Microporous Insulation Board

Industrial Furnaces & Kilns

Microporous insulation board is widely used in high-temperature furnaces. The nano insulation board improves thermal efficiency and reduces fuel consumption.

Petrochemical Industry

Nano microporous insulation board is applied in reactors, pipelines, and high-temperature equipment, ensuring excellent insulation performance.

Steel & Metallurgy

Microporous insulation board is used in ladles, tundishes, and reheating furnaces to minimize heat loss and improve productivity.

Power Generation

Nano insulation board is applied in boilers and thermal power systems to enhance energy efficiency.

New Energy & Aerospace

Nano microporous insulation board is increasingly used in lithium battery systems and aerospace insulation due to its lightweight and high efficiency.
