Rigid Bio Soluble Ceramic Fiber Boards for Furnace Insulation

banner

Insulation and Refractory Materials

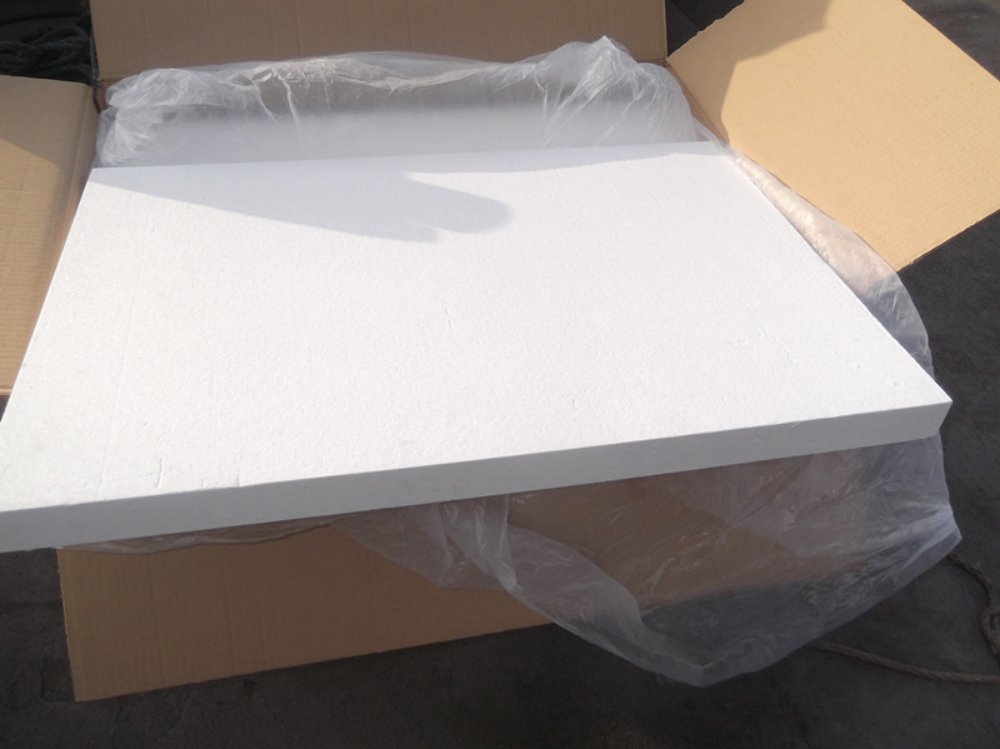

Bio Soluble Ceramic Fiber Board
Bio Soluble Ceramic Fiber Board
High Temperature Soluble Ceramic Fiber Board
China Soluble Ceramic Fiber Board
1260 Soluble Ceramic Fiber Board
Soluble Ceramic Fiber Board

Laurel Bio-Soluble ceramic fiber boards, crafted from eco-friendly, biodegradable ceramic materials, are engineered to deliver exceptional high-temperature performance. Their modular design and customizable dimensions make them ideal for industrial applications such as furnace linings, pipeline insulation, and equipment protection in metallurgy, petrochemicals, and power generation. These boards combine rapid installation with superior thermal resistance, reducing energy loss while adhering to strict environmental standards. Perfect for complex structural environments, they offer a sustainable solution that balances efficiency, safety, and compliance.

Product Details




Here are the typical features of soluble ceramic fiber boards:


1. Solubility & Eco-friendliness: soluble ceramic fiber board can gradually dissolve under specific conditions, degrading environmentally after disposal, in line with green concepts.

2. Great Thermal Insulation: They block heat transfer effectively, used in high-temp settings to cut energy loss and boost efficiency.

3. High-Temp Endurance: Resisting deformation, etc. in heat, they ensure equipment safety during high-temp ops.

4. Flexibility & Workability: Easy to cut, bend, etc., they fit diverse needs and complex spaces.

5. Chemical Stability: Stable against common chemicals, they extend service life in corrosive settings.

6. Lightweight: Lighter than some insulators, they aid transport, installation, and weight-sensitive apps.

7. Sound Absorption: Besides insulating, they absorb noise, bettering work acoustics.

8. Easy to Install: Quick to fix via pasting etc., they shorten construction time and costs




Table parameters

Item

1100℃ Bio-soluble Fiber Board

Density (kg/m3)

300

Permanent Linear Shrinkage(%)

1000℃×24h≤2.0

Modules of Rupture(MPa)

≥0.25

Compressive Strength

(MPa, 10% relative deformation)

0.15

Thermal Conductivity (W/m.k)

200℃

0.06

400℃

0.09

600℃

0.10

800℃

0.11

1000℃

0.16


Features

★ High compressive strength

★ High rigidity and light weight

★ Low thermal conductivity

★ Excellent thermal shock resistance

★ High-temperature stability

★ Low heat storage

★ Easy to install


Soluble ceramic fiber boards find extensive applications in numerous industries. In the metallurgical field, they are widely utilized as linings for furnaces and kilns, effectively withstanding high temperatures and reducing heat dissipation to enhance energy efficiency. In the petrochemical industry, they play a crucial role in insulating pipelines and reactors, safeguarding against heat transfer and chemical corrosion, ensuring the stable operation of production processes. For power generation, they are applied to boiler components and turbine housings to maintain optimal operating temperatures, thereby improving power generation efficiency and reducing maintenance costs. In the construction sector, they can be used in exterior wall insulation and fireproofing systems, contributing to energy-efficient and fire-safe building designs. In the automotive and aerospace industries, they are employed in engine compartments and spacecraft cabins for heat insulation and fire protection, enhancing vehicle and spacecraft performance and safety. Additionally, they are also suitable for use in industrial furnaces, heating systems, and various high-temperature equipment in other sectors, providing reliable thermal insulation and protection.
