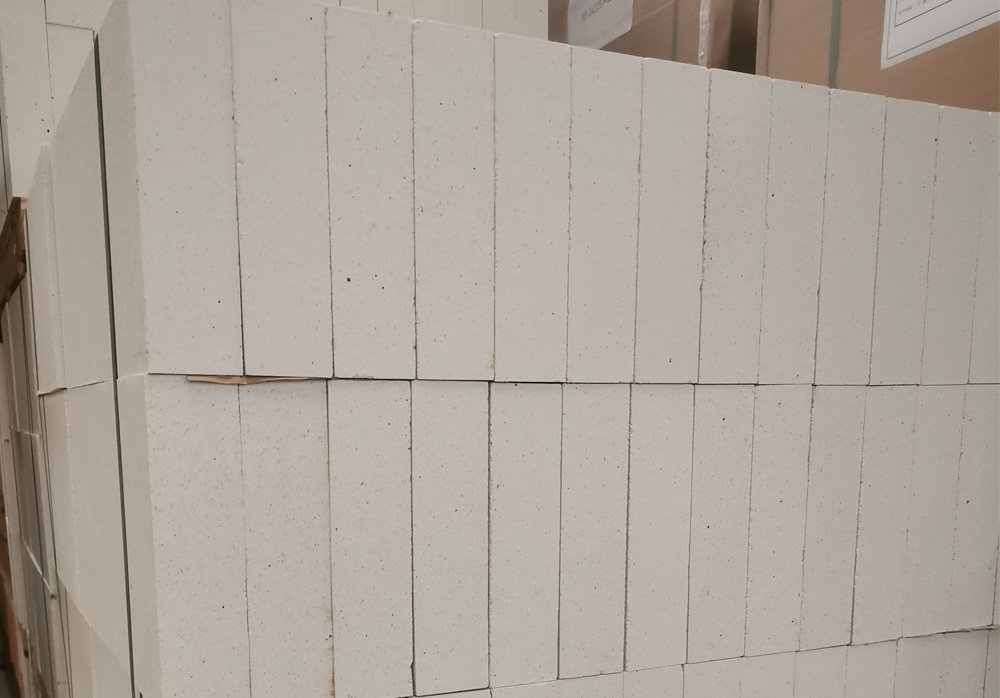

Corundum refractory bricks for industrial furnaces

How Corundum Refractory Bricks Enhance Furnace Longevity and Energy Efficiency

In the high-temperature crucible of industrial manufacturing, furnaces serve as the beating heart of processes ranging from metallurgy to ceramics, glassmaking, and cement production. The longevity and efficiency of these critical systems hinge heavily on the quality of the refractory materials that line their interiors. Among the pantheon of refractory solutions, corundum refractory bricks stand out as a cornerstone of modern furnace design, offering unparalleled resistance to heat, chemical corrosion, and mechanical stress. This article explores how these specialized bricks—alongside their variants such as alumina bricks, high-alumina refractory blocks, and corundum-based refractories—transform furnace performance by extending operational life and optimizing energy use.

The Chemistry and Composition of Corundum-Based Refractories

At the core of these high-performance materials lies corundum, the crystalline form of aluminum oxide (Al₂O₃), renowned for its exceptional hardness (9 on the Mohs scale) and melting point exceeding 2,050°C. Corundum refractory bricks are typically crafted from high-purity alumina powders, sintered to form a dense, crystalline structure that minimizes porosity and maximizes thermal stability. Variations in alumina content give rise to different grades: high-alumina refractory blocks (containing 45–90% Al₂O₃) and corundum bricks (90%+ Al₂O₃), with higher purity translating to superior resistance to extreme temperatures and corrosive environments.

These bricks are distinct from traditional fireclay refractories, which rely on lower-alumina compositions. Instead, aluminum oxide bricks leverage the inherent properties of corundum to create a lining that can withstand the harshest furnace conditions. Whether used in blast furnaces, reheating furnaces, or glass melting tanks, the chemical inertness and thermal conductivity of corundum-based refractories make them indispensable for protecting furnace shells from degradation.

Enhancing Furnace Longevity: The Mechanisms at Work

1. Thermal Shock Resistance: Withstanding Rapid Temperature Fluctuations
Furnaces rarely operate at steady-state temperatures; start-ups, shutdowns, and process variations subject linings to repeated cycles of expansion and contraction. Refractory corundum linings excel here, thanks to their low coefficient of thermal expansion and high thermal conductivity. Unlike lower-quality refractories that crack or spall under thermal shock, corundum ceramic bricks maintain structural integrity, reducing the need for frequent repairs and downtime. This durability is particularly critical in steel ladles and reheating furnaces, where temperature swings can exceed 500°C in minutes.

2. Chemical Corrosion Resistance: Defending Against Aggressive Media
Industrial furnaces are often bathed in corrosive slags, molten metals, or acidic gases. High-purity corundum refractories resist chemical attack better than most materials. For example, in cement kilns, where alkali vapors and calcium oxide-laden slags degrade weaker linings, alumina-rich refractory units form an impervious barrier. Similarly, in aluminum smelters, aluminum trioxide bricks withstand the corrosive effects of molten aluminum and cryolite, preventing premature wear and metal penetration into the furnace structure.

3. Mechanical Strength at Elevated Temperatures

Even at temperatures approaching their melting point, corundum-based refractory components retain significant compressive strength, resisting deformation from mechanical loads like the weight of molten metal or the pressure of charging operations. This strength contrasts with silica-based refractories, which soften at high temperatures. Refractory blocks with corundum thus provide a more reliable structural foundation, reducing the risk of brick displacement or collapse—a common cause of furnace failures.

4. Low Porosity: A Shield Against Penetration
The dense microstructure of corundum bricks minimizes open pores, which are pathways for molten slag or gas infiltration. By reducing penetration, these bricks slow the rate of chemical reactions at the lining interface, extending the time before maintenance or replacement is needed. In glass furnaces, where even minor impurities can affect product quality, the low porosity of alumina corundum bricks also safeguards against contamination, ensuring both longevity and process consistency.

Boosting Energy Efficiency: The Thermal Advantage of Corundum Refractories

1. Low Thermal Conductivity: Minimizing Heat Loss
Energy efficiency is a critical metric for industrial furnaces, where fuel costs often account for a significant portion of operational expenses. Corundum refractory bricks have a thermal conductivity lower than many other high-temperature materials, such as magnesia or chromite, meaning they retain heat within the furnace chamber more effectively. This property reduces the energy required to maintain operating temperatures, the hot face of the lining stays hotter, while the outer shell remains cooler, minimizing heat dissipation into the environment. Over time, this translates to substantial fuel savings—especially in large-scale furnaces operating 24/7.

2. Thermal Insulation and Heat Retention

While corundum-based refractories are not classified as insulating bricks (which prioritize low density over strength), their balance of thermal conductivity and structural integrity allows for thinner lining designs without compromising heat retention. Thinner linings reduce the mass of the furnace, enabling faster heat-up times and more responsive temperature control—an advantage in processes that require frequent cycling. Additionally, the high refractoriness of high-temperature corundum masonry allows furnaces to operate at higher efficiencies, as they can withstand the elevated temperatures needed for modern, energy-intensive processes.

3. Reduced Maintenance, Less Downtime, More Productivity
Longer refractory life directly translates to fewer shutdowns for repairs or relining, which are not only costly but also disrupt production schedules. By minimizing downtime, corundum-containing refractories help maintain consistent furnace operation, reducing the energy wasted during start-up and cool-down cycles. In continuous processes like steelmaking, where every hour of downtime costs thousands of dollars, the reliability of corundum refractory bricks becomes a strategic asset.

Whether you’re operating a steel mill, a glass plant, or a cement kiln, investing in high-quality corundum-containing refractories is an investment in the longevity, efficiency, and profitability of your furnace system. The science of corundum may be rooted in chemistry, but its impact is measured in years of reliable operation and the bottom-line benefits of a more sustainable, high-performing industrial process.
