Ceramic Fiber Board: Efficient and Reliable Refractory Insulation

As a professional refractory material supplier with more than15 years of industry experience, we are proud to introduce our high-performance ceramic fiber board. Exported to Europe, the United States, and many other regions, our boards are trusted for their quality, consistency, and proven reliability in demanding industrial environments.

What is Ceramic Fiber Board?

Ceramic fiber board, sometimes referred to as refractory ceramic slab, fireproof ceramic board, or high-temperature resistant ceramic panel, is a lightweight, rigid insulation product manufactured from high-purity ceramic fibers. It is designed for applications where both thermal stability and mechanical strength are required. With low thermal conductivity and high resistance to heat, ceramic fiber board is widely used to reduce energy loss and protect equipment operating at extreme temperatures.

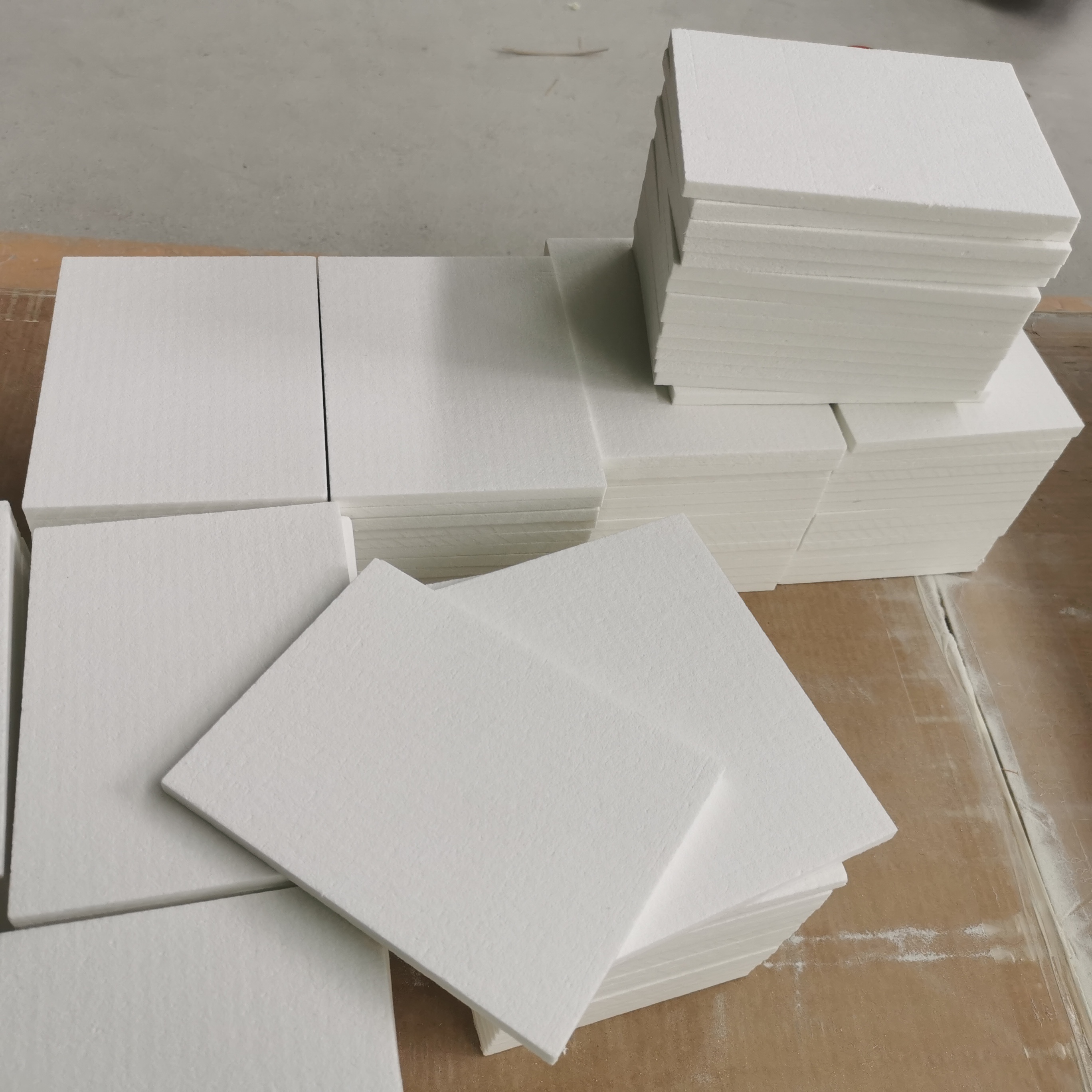

$Ceramic Fiber board The embodiment of efficient refractory materials (2)$

Technical Specifications

Item	STD Board	HP Board	HA Board	HZ Board
Classification Temperature (°C)	1260	1260	1350	1430
Loss on Ignition (%)	≤6	≤6	≤6	≤6
Density (kg/m³)	250–350	250–350	250–350	250–350
Permanent Linear Shrinkage (%)	≤3 (1000°C)	≤3 (1100°C)	≤3.5 (1200°C)	≤3.5 (1350°C)
Compressive Strength (MPa)	0.15–0.3	0.15–0.3	0.15–0.3	0.15–0.3
Thermal Conductivity (W/m·k) @400°C	0.09	0.07	0.07	0.07
Thermal Conductivity (W/m·k) @800°C	0.15	0.14	0.13	0.13
Thermal Conductivity (W/m·k) @1000°C	0.20	0.20	0.20	0.19

Advantages of Ceramic Fiber Board

Outstanding thermal insulation – minimizes heat transfer and improves energy efficiency.

High temperature resistance – maintains strength and shape under continuous exposure to extreme heat.

Excellent chemical stability – resists most corrosive agents, ensuring long service life in harsh industrial conditions.

Lightweight yet rigid – easy to cut, install, and adapt to different designs.

Reliable mechanical strength – supports structural stability in furnaces, kilns, and boilers.

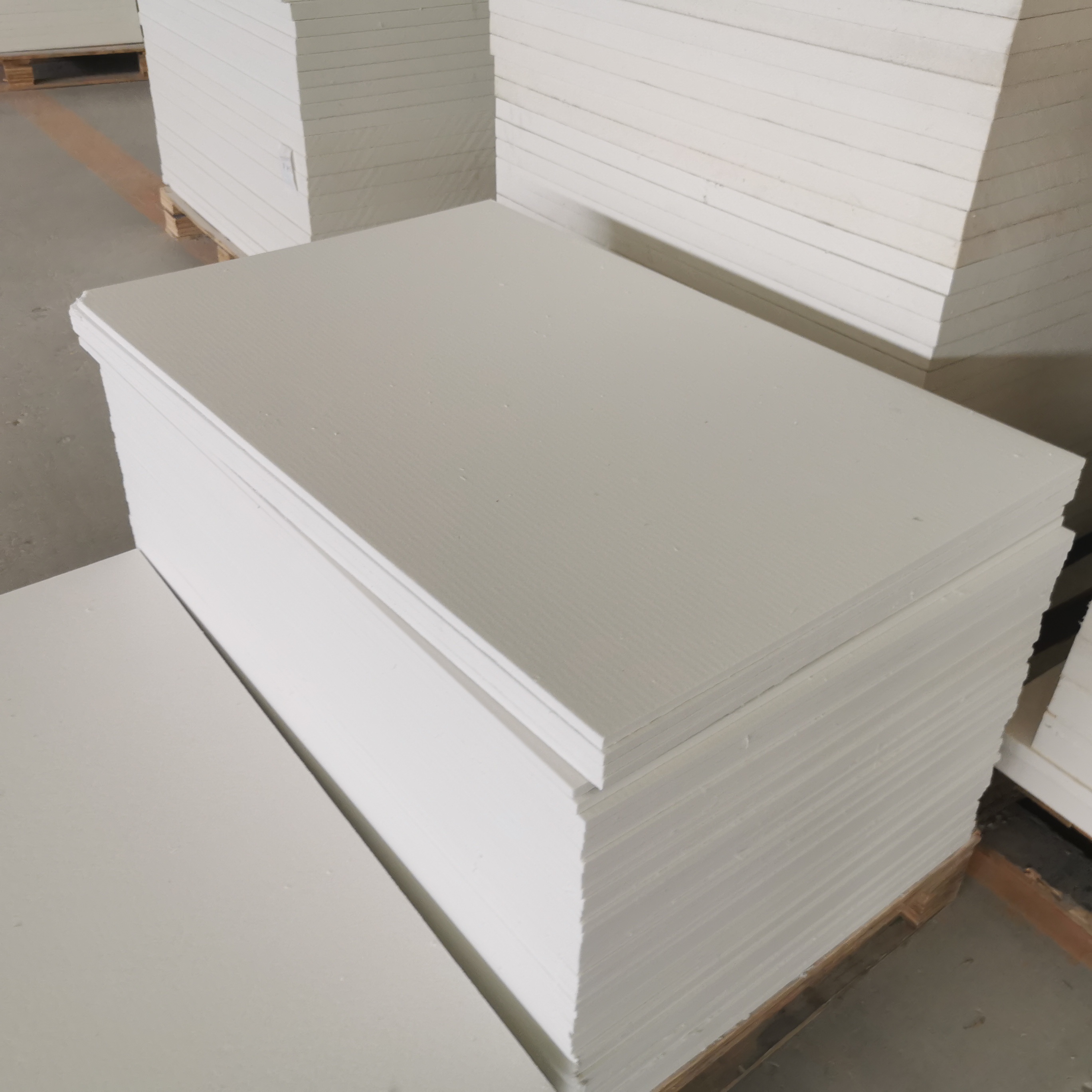

$Ceramic Fiber board The embodiment of efficient refractory materials (1)$

Industrial Applications

Steel industry: used as furnace linings and backup insulation to protect structures from overheating.

Petrochemical sector: applied in reactors, cracking units, and piping systems to provide reliable thermal insulation.

Power generation: installed in boilers and turbines to minimize heat loss and improve fuel efficiency.

Building materials: used in stoves, ovens, and kilns for effective insulation and long-term safety.

General thermal equipment: ideal for laboratory furnaces, fire protection panels, and custom-designed heat systems.Commitment to Quality

Our ceramic fiber boards are manufactured with strict quality control and advanced production techniques. Continuous research and development ensure that our refractory solutions meet the latest industry standards. With stable performance, consistent density, and reliable thermal efficiency, our ceramic fiber board has earned trust across multiple global industries.

Ceramic fiber board is more than just an insulation product—it is a critical material for industries that demand durability, thermal efficiency, and cost savings. Whether in heavy industry, construction, or specialized equipment, our boards deliver dependable protection and long service life.
