Ceramic Fiber Paper: Precision Thermal Insulation for High-Temperature Control

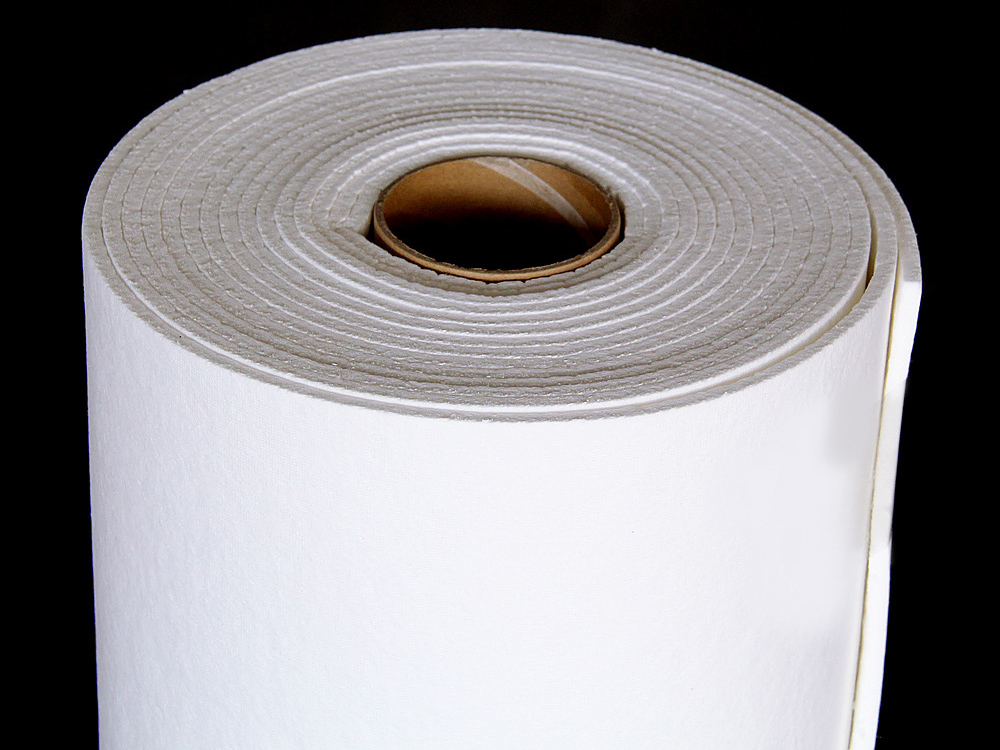

Ceramic fiber paper is a thin, lightweight refractory insulation material developed for applications where space, weight, and thermal precision matter as much as temperature resistance. Produced from high-purity alumina-silica ceramic fibers through a wet-forming process, ceramic fiber paper combines uniform thickness with controlled density, allowing it to perform consistently in environments where conventional insulation materials are either too bulky or too rigid.

Unlike ceramic fiber blankets or boards, ceramic fiber paper is engineered for close-contact thermal sealing and surface insulation. Its microstructure consists of finely dispersed ceramic fibers bonded with minimal organic binders, creating a flexible yet dimensionally stable sheet. After binder burnout at elevated temperatures, the material maintains its integrity and insulation performance, making ceramic fiber paper suitable for continuous service temperatures up to 1260°C, with higher-grade variants available for more demanding conditions.

One of the most practical advantages of ceramic fiber paper lies in its low thermal conductivity combined with extremely low thermal mass. This allows equipment to heat up and cool down rapidly, which is particularly valuable in batch furnaces, laboratory kilns, and thermal cycling systems. Because ceramic fiber paper stores very little heat, it reduces energy loss during shutdowns and improves overall thermal efficiency during operation.

Ceramic fiber paper is frequently used as a thermal barrier, gasket material, or separation layer in high-temperature assemblies. In industrial furnaces, it is installed between refractory components to accommodate thermal expansion and prevent heat transfer between layers. In metallurgical equipment, ceramic fiber paper acts as a protective interface, limiting direct contact between metal parts and refractory linings. Its flexibility allows it to conform to irregular surfaces, ensuring consistent coverage even in complex geometries.

Electrical and electronic industries also rely on ceramic fiber paper for insulation and fire protection. The material’s low electrical conductivity and resistance to thermal degradation make it suitable for cable insulation, heat shields, and fire-resistant wraps in high-temperature zones. In these applications, ceramic fiber paper provides both thermal isolation and passive fire protection without adding excessive thickness or weight.

From a processing perspective, ceramic fiber paper is easy to cut, punch, fold, or laminate, enabling customized shapes for specific equipment designs. It can be supplied in rolls or sheets with controlled thickness tolerances, allowing engineers to integrate it precisely into sealing systems, expansion joints, and layered insulation structures. This adaptability reduces installation time and minimizes material waste on site.

Chemical stability is another defining characteristic of ceramic fiber paper. Under normal operating conditions, it remains resistant to most acids and alkalis, except for strong hydrofluoric acid and concentrated phosphates. This stability supports its use in petrochemical processing, heat treatment furnaces, and exhaust systems where chemical exposure accompanies high temperatures.

In long-term service, ceramic fiber paper performs best when used in applications that prioritize insulation efficiency, flexibility, and surface protection rather than mechanical load-bearing. While it is not designed to replace dense refractory bricks or structural boards, ceramic fiber paper complements those materials by improving thermal sealing and reducing localized heat loss.

As industrial systems continue to demand tighter thermal control, faster heating cycles, and reduced energy consumption, ceramic fiber paper plays a specialized but essential role. Its value lies not in bulk insulation, but in precision thermal management, making ceramic fiber paper a critical component in modern high-temperature engineering solutions.
