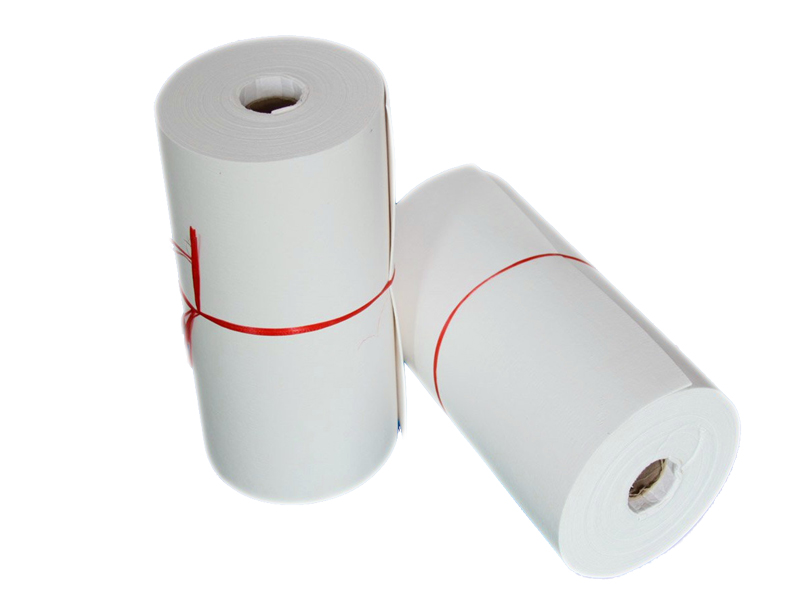

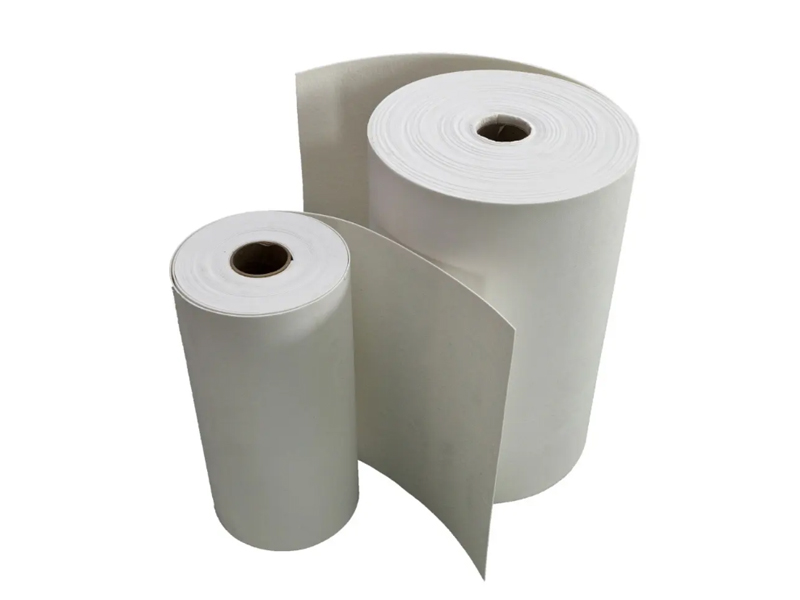

Ceramic Fiber Paper — High-Purity, Flexible Thermal Insulation for High-Temperature Applications

Ceramic fiber paper is a lightweight, uniform, and highly flexible insulation material manufactured from high-purity alumino-silicate ceramic fibers. Through a controlled vacuum-forming process, ceramic fiber paper achieves a smooth surface, low thermal conductivity, and excellent temperature stability, making it suitable for applications requiring precise thermal management and minimal heat loss. Its exceptional flexibility and consistent thickness enable easy cutting, wrapping, and installation, even in tight or irregular spaces where traditional insulation materials cannot be applied efficiently.

Ceramic fiber paper is known for its outstanding heat resistance, typically operating in continuous temperatures up to 1000–1430°C depending on grade. Unlike conventional insulation materials, ceramic fiber paper maintains its structure and thermal performance without shrinking, melting, or emitting odors when exposed to high temperatures. Its extremely low thermal conductivity helps reduce heat transfer, improving energy efficiency in industrial processes. Additionally, the material offers excellent dielectric strength, making ceramic fiber paper suitable not only for thermal insulation but also for electrical insulation in equipment where both heat and voltage resistance are required.

One of the key advantages of ceramic fiber paper is its superior flexibility and easy handling. The material can be cut with simple tools, rolled, folded, or shaped to fit complex surfaces without cracking or delaminating. This allows ceramic fiber paper to be used as a sealing, gasketing, and lining material in furnaces, kilns, high-temperature ducts, exhaust systems, and combustion chambers. It also performs effectively as expansion-joint packing, fireproof wrap, and thermal barrier material in various mechanical and electrical assemblies. The consistent thickness ensures uniform thermal insulation, while its non-asbestos composition provides a safe, environmentally responsible alternative to older insulating materials.

Ceramic fiber paper features excellent chemical stability, resisting most solvents, oils, and weak acids or alkalis. It does not react with metals like aluminum or stainless steel under high temperatures, making it suitable for use in metallurgical processes, heat-treating equipment, and molten metal applications. In fire protection systems, ceramic fiber paper serves as a reliable fire-resistant layer due to its non-combustible nature and ability to block heat and flame penetration. Its lightweight structure further reduces the overall weight load of insulation systems, contributing to improved mechanical efficiency.

Available in a wide range of thicknesses—from ultra-thin grades for precision insulation to thicker sheets for heavy-duty thermal barriers—ceramic fiber paper can be customized to meet the specific demands of industrial equipment. High-purity grades use premium ceramic fibers with minimal shot content, resulting in smoother surfaces and enhanced performance in sensitive applications such as aerospace components, laboratory furnaces, and electronic devices. Reinforced versions containing organic binders offer additional mechanical strength while remaining easy to shape and install; these binders burn off cleanly at relatively low temperatures without affecting long-term insulation performance.

Due to its combination of light weight, high temperature resistance, chemical stability, and ease of installation, ceramic fiber paper has become a widely used material across industries such as metallurgy, power generation, ceramics, glass, aerospace, automotive manufacturing, and fire protection. As industrial processes continue to require more precise and energy-efficient thermal insulation solutions, ceramic fiber paper remains an essential material that helps improve performance, reliability, and operational safety.
